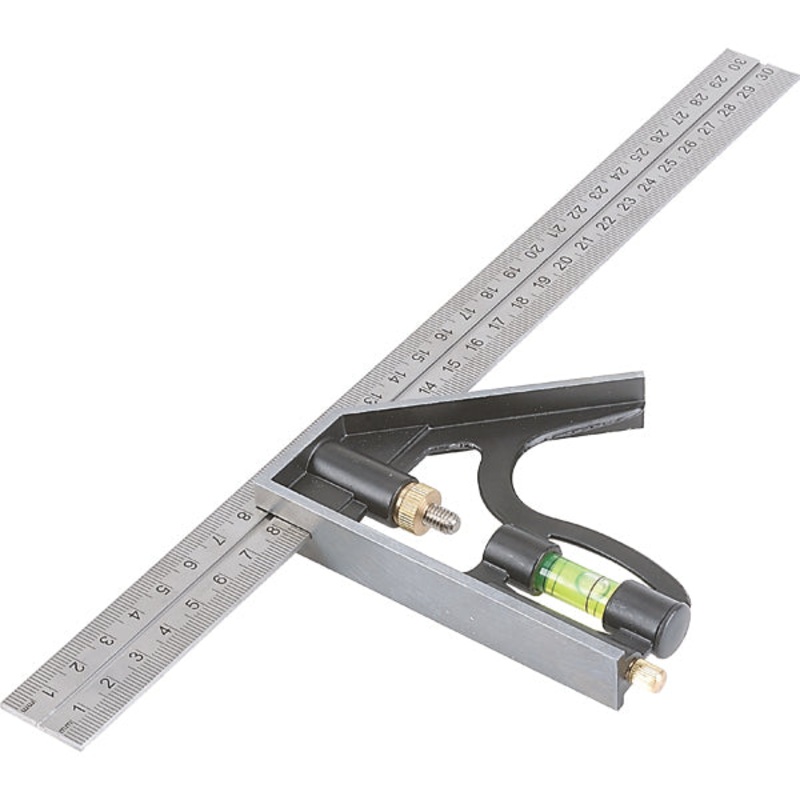

SWTC132M | Swanson #TC132M COMBINATION SQUARE – 300mm

The Swanson 300mm Combination Square features CNC machined working surfaces for enhanced accuracy, with 45 and 90 degree marks for precise measurements. Its impact-resistant acrylic level vial is more durable than traditional tube-type vials. Versatile and multifunctional, it serves as a miter square, try square, depth gauge, and more. The precision-machined die-cast zinc body, high-impact composite head, and spring-loaded brass bolt ensure firm, accurate settings. It includes a stainless steel etched blade with all metric mm scale graduations and a screw-fit brass and hardened steel scribe.

Features:

Precision machined die-cast zinc body.
Hi-impact composite head.
Spring loaded, brass bolt assures firm, accurate settings.
Etched Stainless Steel blade.
Screw fit brass and hardened steel scriber.
Impact resistant acrylic vial.
All metric – mm scale gradations.
Functions as a miter square, try square, depth gauge, and more.
Specifications:

Length: 305mm
Width: 127mm
Depth: 19mm
Blade Width: 25mm
Blade Thickness: 2mm
Blade Material: Stainless Steel
Body Material: Die-cast zinc
Graduations: mm
Weight: 356g
